Dissolution and solubility of calcite-rhodochrosite solid solutions [(Ca1-xMnx)CO3] at 25 °C

Abstract

A complete series of calcite-rhodochrosite solid solutions [(Ca1-xMnx)CO3] are prepared, and their dissolution processes in various water samples are experimentally investigated. The crystal morphologies of the solid solutions vary from blocky spherical crystal aggregates to smaller spheres with an increasing incorporation of Mn in the solids. Regarding dissolution in N2-degassed water, air-saturated water and CO2-saturated water at 25 °C, the aqueous Ca and Mn concentrations reach their highest values after 1240–2400 h, 6–12 h and < 1 h, respectively, and then decrease gradually to a steady state; additionally, the ion activity products (log_IAP) at the final steady state (≈ solubility products in log_Ksp) are estimated to be − 8.46 ± 0.06, − 8.44 ± 0.10 and − 8.59 ± 0.10 for calcite [CaCO3], respectively, and − 10.25 ± 0.08, − 10.26 ± 0.10 and − 10.28 ± 0.03, for rhodochrosite [MnCO3], respectively. As XMn increases, the log_IAP values decrease from − 8.44 ~ − 8.59 for calcite to − 10.25 ~ − 10.28 for rhodochrosite. The aqueous Mn concentrations increase with an increasing Mn/(Ca + Mn) molar ratio (XMn) of the (Ca1-xMnx)CO3 solid solutions, while the aqueous Ca concentrations show the highest values at XMn = 0.53–0.63. In the constructed Lippmann diagram of subregular (Ca1-xMnx)CO3 solid solutions, the solids dissolve incongruently, and the data points of the aqueous solutions move progressively up to the Lippmann solutus curve and then along the solutus curve or saturation curve of pure MnCO3 to the Mn-poor side. The microcrystalline cores of the spherical crystal aggregates are preferentially dissolved to form core hollows while simultaneously precipitating Mn-rich hexagonal prisms.

Introduction

Manganese (II) is a toxic divalent metal that can be found in excessive amounts in various water bodies, soils and rocks [1, 2]. Its mobility in the natural environment is controlled by various geochemical processes, including its incorporation into carbonates to form rhombohedral calcite-rhodochrosite solid solutions [(Ca,Mn)CO3] via a dissolution–recrystallization process [3,4,5,6]. Furthermore, the precipitation of solid (Ca, Mn)CO3 solutions can be a potential technique to eliminate Mn(II) from wastewater [7]. The study of these solid solutions is therefore valuable to understand the Mn cycle in the environment [8].

Although the ionic radius of Ca2+ is approximately 20% larger than that of Mn2+, Mn can substitute Ca in the calcite lattice [9]. While the (Ca, Mn)CO3-H2O system has been broadly investigated in the literature, several essential problems remain unresolved, and many contradictory results have been reported [2]. A limited rhombohedral calcite-rhodochrosite solid solution with a wide miscibility gap can be formed at low temperatures [10, 11]. Conversely, natural calcian rhodochrosite and manganoan calcite have been reported to have a complete component range between calcite and rhodochrosite [4, 12], and a nearly continuous series between CaCO3 and MnCO3 can be prepared in the laboratory [6, 13].

Despite the importance of authigenic mixed Mn–Ca–Mg carbonates in the geochemical cycle of Mn on the Earth’s surface, very limited studies have been conducted to determine the solubility products and stability domain of (Ca,Mn)CO3 solid solutions [4, 6]. The accurate determination of the thermodynamic solubilities of carbonate minerals at low temperatures is therefore essential to the interpretation of the behavior of these minerals in natural waters. Fewer studies have been conducted on solid solutions than on single-component carbonates. Many inconsistent solubility values for MnCO3 can be found in the literature. The Gibbs energies of formation (ΔGf°) of MnCO3 range from − 809.89 kJ/mol to − 818.81 kJ/mol with solubility products (log_Ksp) from − 9.43 to − 10.99 [5, 14]. Generally, synthetic solids yield lower ΔGf° values and appear to be more soluble than natural solids [5]. In addition, the estimation of the dimensionless Guggenheim coefficient a0 for the (Ca,Mn)CO3 solid solutions at low temperature differs greatly. The rhombohedral (Ca,Mn)CO3 solid solutions as a complete series has a0 < 2 (25 °C) [15, 16]. Whereas a0 =  + 3.23 (25 °C) is theoretically calculated [10] and a0 = − 1 ± 3 (20 °C) is derived from the experimental stoichiometric solubilities of synthetic Mn-calcite [Ca0.75Mn0.25CO3] [17]. From the phase relationships in anoxic marine muds, a0 is estimated to be − 3.5 (5 °C) [18], which is nearly equal to the a0 value of − 4 (20 °C) for synthetic Mn-calcite [Ca0.86Mn0.14CO3] [13]. The lack of agreement among (Ca,Mn)CO3 solid solutions make it difficult to put forward reliable geochemical models [11].

The dissolution behaviors of the synthesized Ca0.75Mn0.25CO3, Ca0.52Mn0.48CO3 and Ca0.25Mn0.75CO3 in CO2-saturated water at 20 °C were studied experimentally, and the dissolution paths were analyzed with respect to the stoichiometric saturation and thermodynamic equilibrium using a Lippmann diagram, showing that the metastable solids equilibrated with aqueous solution through dissolution/crystallization at ambient temperature [4]. During the precipitation of the complete (Ca1-xMnx)CO3 solid solutions, no Ca2+ and Mn2+ fractionation between the solid and water was detected at a very high precipitation rate, whereas the Mn2+ cations were commonly enriched in the solid phase at a lower precipitation rate [13]. However, the exact formation and stability conditions of rhodochrosite-calcite solid solutions on a mechanistic and quantitative basis are still not fully understood [19]. During the dissolution of four (Ca1-xMnx)CO3 solids (x = 0–0.12) in acidic solutions, the aqueous Mn2+ concentrations first increased and then decreased with the formation of rhodochrosite (MnCO3), indicating that the dissolution/precipitation of carbonates might be impacted by impurities in calcite [20]. The synthetic disordered Ca-Mg-rhodochrosite (Mn0.58Ca0.39Mg0.03)CO3 dissolved congruently in water at 25 °C, from which the ion activity product (log_IAP) of − 10.39 was extrapolated [6]. In brief, information about the thermodynamic data of (Ca1-xMnx)CO3 solid solutions is still deficient, although their dissolution/precipitation can exert a significant effect on Mn cycling in the environment.

Therefore, the present work aims to determine the apparent solubility of CaCO3–MnCO3 solid solutions illustrating some detail of the dissolution process. Firstly, calcite-rhodochrosite solid solutions [(Ca1-xMnx)CO3] with varying Mn/(Ca + Mn) molar ratios (XMn) from 0.00 to 1.00 are precipitated and characterized. Then, the dissolution process of the obtained solid samples and the release of the components (Mn2+, Ca2+, CO32−/HCO3) are experimentally studied by batch tests. Finally, a Lippmann diagram for the (Ca1-xMnx)CO3 solid solutions is constructed to examine the interaction in the solid solution–aqueous solution (SS-AS) system to evaluate the solubility of Mn-carbonates and the Mn distribution in aqueous environments.

Experimental methods

Solid synthesis

Eleven crystal solids (CR-00–CR-10) of the (Ca1-xMnx)CO3 solid solutions were precipitated by mixing a 2 M Ca + Mn solution with a 0.5 M NH4HCO3 solution based on following equation: M2+ + CO32− = MCO3, where M = (Ca + Mn) (Table 1). Analytical reagent grade chemicals and ultrapure water were used. The solids were prepared at room temperature (22 ± 1 °C) by the dropwise addition of 50 mL of a 2 M mixed solution of Ca(NO3)2 and Mn(NO3)2 with different Mn/(Ca + Mn) molar ratios into 1000 mL of a vigorously agitated 0.5 M NH4HCO3 solution in N2 gas (Table 1). The resulting suspensions were then stirred for another 10 min. Finally, the precipitates were separated from the solutions by membrane filtration, washed cautiously with ethanol and dried for 24 h at 90 °C.

Table 1 Summary of the synthesis and composition of calcite-rhodochrosite solid solutions [(Ca1-xMnx)CO3]

Characterization

The components of the obtained solids were estimated by wet chemical analyses, i.e., 10 mg of each solid was decomposed in 20 mL of 1 M nitric acid solution that was then diluted to 100 mL with ultrapure water. The total calcium and manganese contents were determined using inductively coupled plasma-optical emission spectrometry (ICP-OES, Perkin-Elmer Optima 7000DV). All solids were identified crystallographically by comparing their X-ray diffraction (XRD, X’Pert PRO, PANalytical B.V.) patterns with a Cu Kα radiation source at 40 kV and 40 mA to the reference codes 01-081-2027 for calcite and 00-044-1472 for rhodochrosite of the International Center for Diffraction Data (ICDD). Field-emission scanning electron microscopy (FE-SEM, JEOL JEM-7800F) was applied to examine the morphological images of the precipitates and their approximate sizes. The solids were also embedded in resins, polished until their grains had been sectioned and then coated using carbon to study the compositional inhomogeneity and zoning phenomena within the crystals by backscattered electron imaging (BSEI) with the FE-SEM instrument.

Dissolution experiments

Dissolution experiments of the (Ca1-xMnx)CO3 solid solutions in a closed system were performed. The working principle of the closed-system was described in detail previously [6]. Instrumental-grade N2, air and CO2 were used to saturate the initial solutions. Briefly, 5 g of the (Ca1-xMnx)CO3 solid solutions were weighed and added into three groups of labeled 100 mL polyethylene terephthalate (PET) bottles, and 100 mL of N2-degassed, air-saturated and CO2-saturated ultrapure water was then used to fill the bottles. After being capped, the bottles were immersed in water baths at 25 °C. At various intervals (1, 3, 6, 12, 24, 48, 72, 120, 240, 360, 480, 720, 960, 1200, 1440, 1680, 1920, 2160, 2400, 4800 and 7200 h) after the start of the experiment, one bottle from each group was removed. The pH values were immediately measured, and the solutions were filtered with 0.45 µm membrane filters. The HCO3/CO32- concentrations were measured by using an automatic potentiometric titrator (888 Titrando, Metrohm, Switzerland). Additionally, 5 mL of the solutions was filtered through 0.22 µm membranes and acidified in 25 mL flasks using 0.2% nitric acid. The total calcium and manganese contents were determined using ICP-OES. At the experimental end, the solid residuals were collected from the bottles, washed with ethanol, dried at 90 °C for 24 h, and characterized using XRD and FE-SEM as previously described.

Thermodynamic calculations

For the dissolution of the (Ca1-xMnx)CO3 solid solutions, the activities of free Mn2+, Ca2+ and CO32− were first estimated using the geochemical code PHREEQC (Version 3.6.2) [21], and then the ion activity products (IAPs) were calculated after the definitions, which equaled the solubility products (Ksp) of the (Ca1-xMnx)CO3 solid solutions at equilibrium. The component species involved in the simulation contained Mn2+, MnOH+, Mn(OH)20, Mn(OH)3, Mn(OH)42− and MnHCO3+ for manganese; Ca2+, CaOH+, CaHCO3+ and CaCO30 for calcium; and CO32−, HCO3, H2CO30, CaHCO3+ and MnHCO3+ for carbonate. The built-in database minteq.v4.dat of PHREEQC included the thermodynamic properties of all solid phases and aqueous species for modeling (Additional file 1: Appendix S1). The ionic strength values (< 0.01166 mol/L) lay in the applicable range for the extended Debye-Hückel equation.

Results and discussion

Solid characterization

Composition

The compositions of the obtained solids were close to the Mn/(Ca + Mn) mole ratios of the starting solution (Table 1). The predicted Mn/(Ca + Mn) molar ratios (XMn) were not linearly correlated with the measured XMn, showing the preferential Mn uptake of the solids [5]. After the dissolution of the (Ca1-xMnx)CO3 solid solutions in the N2-degassed, air-saturated and CO2-saturated water samples for 300 d, the Mn/(Ca + Mn) molar ratios (XMn) of the residual solids increased slightly, indicating the preferential retention of Mn in the solids.

XRD

The synthesized crystals belonged to calcite–rhodochrosite [(Ca1-xMnx)CO3] solid solutions, and all XRD spectra were confirmed to be the R \(\overline{3}\) c space group (Fig. 1). The crystals of XMn = 0 and 1 (CR-00 and CR-10) were identical to calcite (ICSD Reference code 01-072-1937) and rhodochrosite (00-044-1472), respectively. The reflection peaks, particularly (104), shifted slightly to higher angles with increased Mn incorporation, owing to the smaller interplanar distance of Mn-calcite in comparison with pure calcite. All well-crystallized solids differed only in the peak locations, widths and intensities in their XRD spectra, indicating that they were not simple mixtures of the calcite and rhodochrosite endmembers but rather calcite–rhodochrosite [(Ca1-xMnx)CO3] solid solutions (Fig. 1; Additional file 1: Appendix S2-A ).

Fig. 1
figure1

Diffraction patterns of the (Ca1-xMnx)CO3 solid solutions (a) before and (b) after dissolution in air-saturated water for 300 d

Regarding the solids that were formed from aqueous solutions with low Mn2+/Ca2+ ratios (CR-00 and CR-01) or high Mn2+/Ca2+ ratios (CR-07–CR-10), only the peaks corresponding to the calcite or rhodochrosite endmembers were found in the XRD patterns (Fig. 1). Regarding the solids that were formed from aqueous solutions with intermediate Mn2+/Ca2+ ratios (CR-02–CR-06), all the XRD patterns exhibited double peaks, and as a result, two groups of reflections were considered for indexing: in the first group, the 2θ angles were close to the corresponding reflections of calcite and lower than the second group whose reflections were closer to the rhodochrosite peaks. The presence of double peaks indicated compositional heterogeneities in the samples, which was also confirmed in the electron microscopy observations and microprobe analyses. As the Mn2+/Ca2+ ratios in the starting solutions increased, the reflections assigned to the Mn-rich zones became progressively more intense [2].

Additional reflections that could be attributed to ordered kutnohorite were not found in any of the XRD patterns [22]. After dissolution for 300 d, no obvious variations, including additional peaks for portlandite [Ca(OH)2] and pyrochroite [Mn(OH)2], were found for all solids (Fig. 1; Additional file 1: Appendix S2-B ).

SEM

The morphologies of the crystals exhibited a strong dependence on the Mn concentrations in the starting solutions. A variety of crystal morphologies were obtained, showing the effects of Mn2+ (even at low concentrations) on the growth of the {104} faces of calcite [2, 11].

The synthesized calcite (CR-00) showed a typical morphology with rhombohedral habits defined by {104} planes with a grain size of ~ 10 µm (Fig. 2; Additional file 1: Appendix S3). The sizes of the (Ca1-xMnx)CO3 solid solutions decreased with an increasing XMn, although the morphologies remained rhombohedral for the (Ca1-xMnx)CO3 aggregations (Fig. 2), showing that manganese could influence the growth and morphology of calcite [11, 20]. As the Mn concentrations increased, the (Ca1-xMnx)CO3 solid solutions varied from blocky crystals to spherulites and peanut-like aggregates [23]. The crystal morphologies of the intermediate compositions and the MnCO3 endmember (XMn = 0.11–1.00; CR-01–CR-10) varied from blocky spherical crystal aggregates to smaller spheres following the change in the Mn contents of the initial solutions (Fig. 2). The individual was a crystal, the surface of which was formed by the aggregation of numerous minuscule blocks of {104} facets that appeared slightly disoriented, as they traced the external shape of a solid that could be considered spherical. This final morphology was a result of intense splitting phenomena during the growth process [2].

Fig. 2
figure2

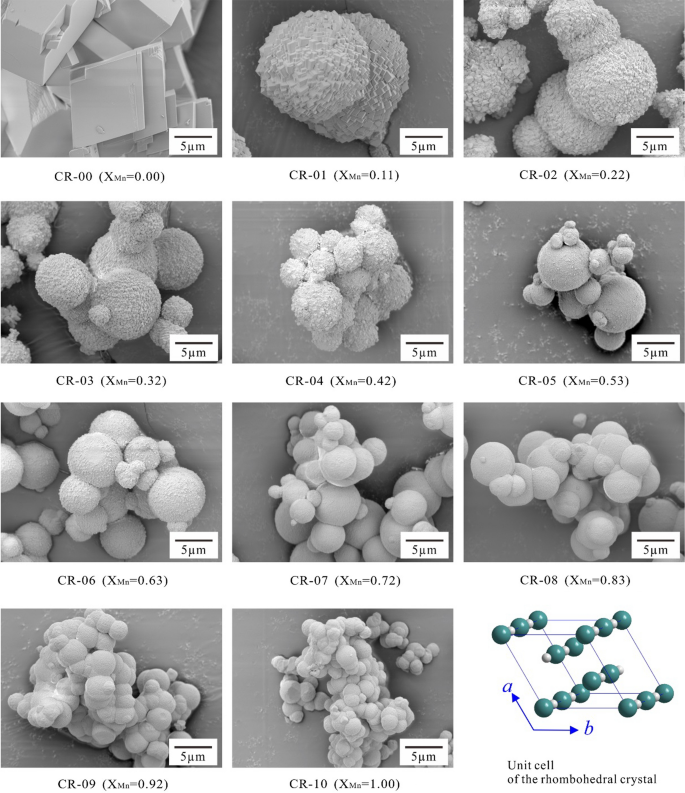

SEM images of the (Ca1-xMnx)CO3 solid solutions before dissolution

The increase in the relative amounts of Mn in the starting solution could cause a further modification of the external morphology of the crystals (Fig. 2; Additional file 1: Appendix S3). With increasing Mn concentrations, the size of the individual crystals decreased, and the terrace texture of the external morphology was eliminated and replaced by a very smooth and rounded surface. This morphological modification was also accompanied by a decrease in the ‘physical’ spherical particle diameters. This decrease in crystal sizes was expected due to the lower solubilities of Mn-rich carbonates in comparison to Ca-rich carbonates, i.e., the less soluble Mn-rich phases were more metastable; consequently, they crystallized at a higher supersaturation [24]. This higher supersaturation caused a larger nucleation density, consequently decreasing the crystal size. Similar results have also been observed in earlier studies [2, 23].

Sections of the crystal aggregates (CR-01–CR-10) grown from starting aqueous solutions containing Mn2+ showed clear oscillatory concentric zoning, which indicated the core-to-rim compositional heterogeneity of the bulk crystal spheres (Figs. 3 and 4; Additional file 1: Appendix S4 and S5) or the core-to-rim crystalline heterogeneity of the pure MnCO3 spheres (CR-10) (Fig. 5). Since variations in image brightness represented changes in composition, the visibility of compositional zoning could be attained by the backscattered imaging of polished central sections of crystals. Backscattered electron images of some representative individuals (CR-03 and CR-05) together with the corresponding compositional profiles are shown in Fig. 3 before dissolution and in Additional file 1: Appendix S4 after dissolution. The central part of the crystal was always relatively rich in Mn. Surrounding this core were successive Ca-rich and Mn-rich rings [2]. The thickness of these zones ranged from approximately 0.8 µm, and variations within a ring never exceeded an XMn value of 0.10. In the outer part, the morphology of an initial rhombohedron could still be seen (Additional file 1: Appendix S5).

Fig. 3
figure3

BSE images of the equatorial sections and the corresponding compositional profiles along the A-B line of the (a) (Ca0.68Mn0.32)CO3 (CR-03) and (b) (Ca0.48Mn0.52)CO3 (CR-05) solids before dissolution

Fig. 4
figure4

SEM and BSE images of (Ca0.68Mn0.32)CO3 (CR-03) solid (a) before and (b) after dissolution in air-saturated water for 300 d

Fig. 5
figure5

SEM and BSE images of pure MnCO3 (CR-10) (a) before and (b) after dissolution in air-saturated water for 300 d to show the formation of hollow spheres and hexagonal prisms without terminations

High compositional gradients of crystals have been proven to be a major characteristic of solid solutions with a great difference in the solubilities of the endmembers (2 to 3 orders of magnitude) [25, 26] and could be easy to explain considering changes in the fluid composition during crystal growth [2, 27, 28]. The Mn-rich phases of the (Ca,Mn)CO3 solid solutions were clearly much less soluble (~ 2 orders of magnitude) than the Ca-rich phases, so Mn was preferentially incorporated in the solid phases at the primary nucleation stage. The consumption of Mn in the bulk crystals caused the local depletion of Mn2+ in the solutions and the subsequent growth of Ca-rich solid phases. The Ca incorporation in the crystal reduced the Ca concentrations in the nucleation area, and Mn once again started to be preferentially incorporated toward the solids. Because of the large difference in the solubilities of calcite and rhodochrosite, a very small change in the solution composition during Mn enrichment or depletion could cause a large compositional gradient in the growing solid [2].

Generally, all solids after dissolution showed the same macroscopic characteristics as before, i.e., the endmember calcite (CR-00) had a common appearance with rhombohedral habits, and the morphologies of crystals of the intermediate compositions and the endmember rhodochrosite (CR-01–CR-10) changed from blocky spherical crystal aggregates to spheres following the increase in Mn content (Fig. 2; Additional file 1: Appendix S3).

After calcite dissolution, the edges of the crystals degenerated, and etch pits on the surface were observed (Additional file 1: Appendix S3). Furthermore, it was observed that the microcrystalline cores of the spherical crystal aggregates (CR-01–CR-10) were preferentially dissolved to form hollows while simultaneously precipitating Mn-rich hexagonal prisms (Figs. 4 and  5; Additional file 1: Appendix S5). The rhombohedral crystals were not fully closed so solution could flow into the core of the sphere, which resulted in the first dissolution of the core crystals that had a smaller grain size than the peripheral crystals. Needle-like crystals or hexagonal prisms without rhombohedral terminations more clearly formed with an increasing dissolution time and Mn/(Ca + Mn) molar ratio (XMn) during the dissolution of solids containing Mn (CR-01–CR-10). EDS analyses indicated that the acicular crystals or hexagonal prisms clearly had a higher Mn content than the bulk composition of the original solid (Additional file 1: Appendix S5). The rhodochrosite precipitate was monocrystalline [20, 29]. It was also observed that some rod-like phases formed during the interaction between the calcite crystals and Mn2+ solution [30, 31].

Variation of the aqueous solution

Regarding dissolution in air-saturated water and N2-degassed ultrapure water, the aqueous pH decreased gradually to a steady state (Figs. 6 and  7). The aqueous Ca and HCO3 + CO3 concentrations increased up to the highest value after 1240–2400 h of dissolution for all (Ca,Mn)CO3 solid solutions. The aqueous Mn concentrations increased up to the highest value of ~ 0.20 mmol/L after 1440 h and then decreased gradually to a steady state for pure rhodochrosite [MnCO3] (CR-10). Regarding the Mn-containing solids (CR-01–CR-09), the aqueous Mn concentrations and the aqueous Mn/(Ca + Mn) mole ratios increased up to the highest value after 6–12 h of dissolution and then decreased gradually to a steady state (Additional file 1: Appendix S6). The X-ray photoelectron spectroscopy (XPS) analysis showed that Mn2+ ions were not oxidized during the dissolution in air-saturated initial solutions for the closed-system experiments (Additional file 1: Appendix S7).

Fig. 6
figure6

Variation in the aqueous pH and components during the dissolution of the (Ca1-xMnx)CO3 solid solutions in air-saturated water

Fig. 7
figure7

Variation in the aqueous pH and components during the dissolution of the (Ca1-xMnx)CO3 solid solutions in N2-degassed water

Regarding dissolution in CO2-saturated water, the aqueous pH increased rapidly from 4.26 of the starting solutions to 5.35–6.06 within 1 h of dissolution and then gradually reached a steady state (Fig. 8). Generally, the aqueous concentrations of Ca, Mn and HCO3 + CO3 reached maximum values within 1 h of dissolution and then decreased to steady states with a slight fluctuation between 6 and 24 h. The aqueous Mn/(Ca + Mn) mole ratios increased up to the highest value after 1–6 h of dissolution and then decreased gradually to a steady state (Additional file 1: Appendix S6).

Fig. 8
figure8

Variation in the aqueous pH and components during the dissolution of the (Ca1-xMnx)CO3 solid solutions in CO2-saturated water

A large amount of the released Mn was eliminated from solutions, probably through reprecipitation/recrystallization. However, the Mn/(Ca + Mn) molar ratios in solution were clearly lower than XMn of the corresponding solid, indicating a nonstoichiometric release of Mn and Ca (Additional file 1: Appendix S6 and S8). It is also worth noting that the aqueous pH decreased and the aqueous Mn concentrations increased with an increasing XMn of the (Ca,Mn)CO3 solid solutions. The aqueous Ca and HCO3 + CO3 concentrations showed the highest values at XMn = 0.53–0.63 (CR-05–CR-06) and then decreased as the XMn values decreased or increased (Additional file 1: Appendix S8).

The stoichiometric dissolution of the (Ca1-xMnx)CO3 solid solutions is as follows:

$$\left( {{\text{C}}{{\text{a}}_{1 - {\text{X}}}}{\text{M}}{{\text{n}}_{\text{X}}}} \right){\text{C}}{{\text{O}}_{\text{3}}} = \left( {1 - {\text{X}}} \right){\text{Ca}}_{\left( {{\text{aq}}} \right)}^{2 + } + {\text{XMn}}_{\left( {{\text{aq}}} \right)}^{2 + } + {\text{CO}}_{3\left( {{\text{aq}}} \right)}^{2 - }$$
(1)
$${\text{Ca}}^{{{2} + }} + {\text{ OH}}^{ - } = {\text{Ca}}\left( {{\text{OH}}} \right)^{ + }$$
(2)
$${\text{Mn}}^{{{2} + }} + {\text{ nOH}}^{ - } = {\text{ Mn}}\left( {{\text{OH}}} \right)_{{\text{n}}}^{{\left( {{\text{n}} - {2}} \right) - }} \quad \left( {{\text{n}} = {1} \sim {4}} \right)$$
(3)
$${\text{Ca}}^{{{2} + }} + {\text{ H}}^{ + } + {\text{ CO}}_{{3}}^{{{2} - }} = {\text{ CaHCO}}_{{3}}^{ + }$$
(4)
$${\text{Mn}}^{{{2} + }} + {\text{ H}}^{ + } + {\text{ CO}}_{{3}}^{{{2} - }} = {\text{ MnHCO}}_{{3}}^{ + }$$
(5)
$${\text{CO}}_{{3}}^{{{2} - }} + {\text{ nH}}^{ + } = {\text{H}}_{{\text{n}}} {\text{CO}}_{{3}}^{{\left( {{2} - {\text{n}}} \right) - }} \quad \left( {{\text{n}} = {1},{ 2}} \right)$$
(6)

At the early stage, all components were dissolved stoichiometrically (Eq. (1)). Regarding the dissolution in N2-degassed water and air-saturated water, the pH decrease was ascribed to the formation of Ca(OH)+ and Mn(OH)n(n−2)− (Eqs. (2) and (3)), which resulted in OH depletion. Regarding the dissolution in CO2-saturated water, the pH increase was ascribed to the formation of CaHCO3+, MnHCO3+ and HnCO3(2−n)− (Eqs. (4)–(6)), which resulted in H+ depletion. The notable pH variation showed that the initial dissolution was pH-controlled [20, 32]. More calcium was dissolved than manganese, indicating that the (Ca1-xMnx)CO3 solid solutions dissolved nonstoichiometrically [20] and suggesting the existence of an interfacial dissolution–precipitation process; thus, manganese more favorably nucleated on the crystal surfaces to form new precipitates [20, 33].

Determination of the stoichiometric solubility

Dissolution was carried out until the differences in the calculated IAP values for the final three solutions (i.e., 2400 h, 4800 h and 7200 h; assuming a steady state was reached) were mostly within ± 0.25 log units [34]. The PHREEQC simulation results indicated that all aqueous solutions in the present research were undersaturated with respect to any probable secondary mineral phases, including portlandite [Ca(OH)2, saturation indexes (SI) = − 6.68 ~ − 15.10] and pyrochroite [Mn(OH)2, SI = − 1.27 ~ − 14.98].

The thermodynamic solubility product could be calculated from the long-term steady states or extrapolated ion activity products (IAPs) of the solutions that corresponded to the equilibrium constant of mineral dissolution [6]. The equilibrium constant (Ksp, the stoichiometric solubility product) of the dissolution after Eq. (1) at dissolution equilibrium can be estimated by Eq. (7):

$$K_{{{\text{sp}}}} = {\text{ IAP }} = {\mkern 1mu} \left\{ {{\text{Ca}}^{{2 + }} } \right\}^{{1 - {\text{x}}}} \left\{ {{\text{Mn}}^{{2 + }} } \right\}^{{\text{x}}} \left\{ {{\text{CO}}_{3}^{{2 - }} } \right\}$$
(7)

where {} is the free ion activity.

The standard free energy of reaction (ΔGro) can be calculated from Ksp at 298.15 K and 0.101 MPa with Eq. (8):

$$\Delta G_{r}^\circ \, = \, - {5}.{7}0{\text{8 log}}\_K_{{{\text{sp}}}}$$
(8)

For Eq. (1),

$$\Delta G_{r}^\circ \, = \, \left( {{1} - {\text{x}}} \right)\Delta G_{f}^\circ \left[ {{\text{Ca}}^{{{2} + }} } \right] \, + {\text{ x}}\Delta G_{f}^\circ \left[ {{\text{Mn}}^{{{2} + }} } \right] \, + \Delta G_{f}^\circ \left[ {{\text{CO}}_{{3}}^{{{2} - }} } \right] \, - \Delta G_{f}^\circ \left[ {\left( {{\text{Ca}}_{{{1} - {\text{x}}}} {\text{Mn}}_{{\text{x}}} } \right){\text{CO}}_{{3}} } \right]$$
(9)

Rearranging, we obtain:

$$\Delta G_{f}^\circ \left[ {\left( {{\text{Ca}}_{{{1} - {\text{x}}}} {\text{Mn}}_{{\text{x}}} } \right){\text{CO}}_{{3}} } \right] \, = \, \left( {{1} - {\text{x}}} \right)\Delta G_{f}^\circ \left[ {{\text{Ca}}^{{{2} + }} } \right] \, + {\text{ x}}\Delta G_{f}^\circ \left[ {{\text{Mn}}^{{{2} + }} } \right] \, + \, \Delta G_{f}^\circ \left[ {{\text{CO}}_{{3}}^{{{2} - }} } \right] \, - \Delta G_{r}^\circ$$
(10)

Tables 2, 3 and 4 list the pH, Ca, Mn and HCO3/CO32− analytical results and the calculated log_IAP values at the final steady state (≈log_Ksp) for the (Ca1-xMnx)CO3 solid solutions. Based on the obtained literature data, ΔGf°[Ca2+] = − 553.54 kJ/mol, ΔGf°[Mn2+] = − 228 kJ/mol and ΔGf°[CO32−] = − 527.9 kJ/mol [35], the free energies of formation, ΔGf°[(Ca1-xMnx)CO3], were also estimated.

Table 2 Analytical data and solubility of the (Ca1-xMnx)CO3 solid solutions in air-saturated water at 25 °C
Table 3 Analytical data and solubility of the (Ca1-xMnx)CO3 solid solutions in N2-degassed water at 25 °C
Table 4 Analytical data and solubility of the (Ca1-xMnx)CO3 solid solutions in CO2-saturated water at 25 °C

Regarding the dissolution in N2-degassed, air-saturated and CO2-saturated ultrapure waters at 25 °C, the average log_IAP values at the final steady state (≈log_Ksp) were estimated to be − 8.46 ± 0.06, − 8.44 ± 0.10 and -8.59 ± 0.10, respectively, for calcite [CaCO3] with ΔGf° values of − 1129.71 ± 0.30 kJ/mol, − 1129.63 ± 0.59 kJ/mol and − 1130.48 ± 0.57 kJ/mol, respectively. These results were consistent with the various Ksp and ΔGf° values for CaCO3 found in the literature. For instance, both the minteq.v4.dat database and the phreeqc.dat database showed a log_Ksp of − 8.48 [21, 36, 37]. Additionally, CaCO3 has a very well-defined solubility product (log_Ksp) reported to fall within − 8.30 [14, 38].

Regarding the dissolution in N2-degassed, air-saturated and CO2-saturated ultrapure waters at 25 °C, the average log_IAP values at the final steady state (≈log_Ksp) were estimated to be − 10.25 ± 0.08, − 10.26 ± 0.10 and − 10.28 ± 0.03, respectively, for rhodochrosite [MnCO3] with ΔGf° values of − 814.39 ± 0.44 kJ/mol, − 814.46 ± 0.54 kJ/mol and − 814.59 ± 0.20 kJ/mol, respectively. Many inconsistent values of the solubility product for rhodochrosite [MnCO3] have been reported in the literature [11]. Some of the log_Ksp values for MnCO3 reported are − 9.47 [5], − 10.06 [39], − 10.30 [3], − 10.41 [13], − 10.42 [40], − 10.55 [41], − 10.62 [42], − 10.76 [43], − 10.99 [14], − 11.39 ~ − 11.65 [38] and − 12.19 [44]. The various ΔGf° values for MnCO3(s) found in the literature ranged from − 809.89 ± 0.73 kJ/mol [5] to − 818.81 kJ/mol [14], including − 812.53 kJ/mol [45], − 813.0 kJ/mol [39], − 814.6 kJ/mol [14], − 816.05 ± 1.38 kJ/mol [46], − 816.32 ± 0.07 kJ/mol [41], − 816.6 ± 0.2 kJ/mol [47] and − 816.7 kJ/mol [42]. As a result, a large difference among the log_Ksp values for rhodochrosite could also be found in various databases. For instance, whereas the minteq.v4.dat database [36] showed a log_Ksp of − 10.58, the phreeqc.dat database had a log_Ksp of − 11.13 [21, 37]. A log_Ksp of − 10.50 is usually accepted in the geochemical literature [48]. The disparity in the published thermodynamic solubility products arose from the lack of experimental analyses and their derivation/extrapolation, from the differences in the involved aqueous speciations [49] or from the impurities in solid samples [5].

As the XMn of the (Ca1-xMnx)CO3 solid solutions increased, the log_IAP values at the final steady state decreased from − 8.44 ~ − 8.59 for calcite to − 10.25 ~ − 10.28 for rhodochrosite (Tables 2, 3 and 4). These values were consistent with log_Ksp = − 9.3 for Mn25Ca0.75CO3 and log_IAP of − 9.9 for Mn0.48Ca0.52CO3 obtained from dissolution experiments [4]. The disordered calcian rhodochrosite (Mn0.58Ca0.39Mg0.03CO3) precipitated in the laboratory showed a log_IAP value of -10.38 after long-term equilibration [6]. The solubilities of the MnxCa1-xCO3 solid solutions in the present work were generally lower than the data calculated using the empirical expression derived from the experimental electrochemical cell data [5], which was related to the ΔGf° value of − 809.89 ± 0.73 kJ/mol for MnCO3 being too large in comparison to those (− 812.53 ~ − 818.81 kJ/mol) in the present work and other studies [14, 39, 41, 42, 45,46,47].

Lippmann diagram

Construction of the Lippmann diagram

The solid solution–aqueous solution (SS-AS) system is of essential importance to understand the geochemical process. Despite many studies, thermodynamic data about the SS-AS interaction are still scarce. The methods to construct Lippmann diagrams have been described in detail in numerous works covering a wide variety of SS-AS systems [2, 10, 25, 26, 28, 34, 50,51,52,53,54,55,56].

The Lippmann diagram is a graph that shows the “solidus” and “solutus” phase relationship in an SS-AS system. The “total activity product” (ΣΠSS) is defined as the sum of the partial activity products of the endmembers at equilibrium. The “solidus” and “solutus" curves are the plots of ΣΠSS versus the solid component and the solution component, which define all probable thermodynamic saturation states as a function of the solid and aqueous components, respectively.

Regarding the calcite-rhodochrosite solid solutions [(Ca1-xMnx)CO3], the “solidus” curve is described by

$$\sum {\prod_{{{\text{SS}}}} } = \left( {\left\{ {{\text{Ca}}^{{{2} + }} } \right\} + \left\{ {{\text{Mn}}^{{{2} + }} } \right\}} \right)\left\{ {{\text{CO}}_{{3}}^{{{2} - }} } \right\} \, = {\text{K}}_{{{\text{Ca}}}} {\text{X}}_{{{\text{Ca}}}} \gamma_{{{\text{Ca}}}} + {\text{K}}_{{{\text{Mn}}}} {\text{X}}_{{{\text{Mn}}}} \gamma_{{{\text{Mn}}}}$$
(11)

where {} designates aqueous activity. \({\text{K}}_{\text{Ca}}\) and \({\text{K}}_{\text{Mn}}\), \({\text{X}}_{\text{Ca}}\) and \({\text{X}}_{\text{Mn}}\), \({\gamma }_{\text{Ca}}\) and \({\gamma }_{\text{Mn}}\) are the solubility products, the molar ratios (x, 1−x) and the activity coefficients of CaCO3 and MnCO3 in the (Ca1-xMnx)CO3 solid solutions, respectively.

The “solutus” curve is expressed by:

$$\sum {\prod_{{{\text{SS}}}} } = \frac{1}{{\frac{{{\text{X}}_{{{\text{Ca}}^{{2 + }} {\text{,aq}}}} }}{{{\text{K}}_{{{\text{Ca}}}} \gamma_{{{\text{Ca}}}} }} + \frac{{{\text{X}}_{{{\text{Mn}}^{{2 + }} {\text{,aq}}}} }}{{{\text{K}}_{{{\text{Mn}}}} \gamma_{{{\text{Mn}}}} }}}}$$
(12)

where \({\text{X}}_{{\text{Ca}}^{2+}\text{,aq}}\) and \({\text{X}}_{{\text{Mn}}^{2+}\text{,aq}}\) are the activity ratios of aqueous Ca2+ and Mn2+, respectively.

Regarding the members of fixed XCa = 1-XMn, a set of minimum stoichiometric saturation curves in terms of \({\text{X}}_{{\text{Ca}}^{2+}\text{,aq}}\) are expressed by:

$$\sum {\prod_{{{\text{SS}}}} } = \frac{{{\text{IAP}}}}{{({\text{X}}_{{{\text{Ca}}^{{2 + }} {\text{,aq}}}} )^{{{\text{X}}_{{{\text{Ca}}}} }} ({\text{X}}_{{{\text{Mn}}^{{2 + }} {\text{,aq}}}} )^{{{\text{X}}_{{{\text{Mn}}}} }} }}$$
(13)

Regarding the endmembers CaCO3 and MnCO3, XCa = 1 and XCa = 0, the endmember saturation curves are described by:

$$\sum {\prod_{{{\text{CaCO}}_{{3}} }} } = \frac{{\left\{ {{\text{Ca}}^{{2 + }} } \right\}\left\{ {{\text{CO}}_{{3}}^{{2 - }} } \right\}}}{{({\text{X}}_{{{\text{Ca}}^{{2 + }} {\text{,aq}}}} )^{{{\text{X}}_{{{\text{Ca}}}} }} }} = \frac{{{\text{K}}_{{{\text{Ca}}}} }}{{({\text{X}}_{{{\text{Ca}}^{{2 + }} {\text{,aq}}}} )^{{{\text{X}}_{{{\text{Ca}}}} }} }}$$
(14)
$$\sum {\prod_{{{\text{MnCO}}_{{3}} }} = \frac{{\left\{ {{\text{Mn}}^{{2 + }} } \right\}\left\{ {{\text{CO}}_{3}^{2 - } } \right\}}}{{\left( {{\text{X}}_{{{\text{Mn}}^{2 + } ,{\text{aq}}}} } \right)^{{{\text{X}}_{{{\text{Mn}}}} }} }} = \frac{{{\text{K}}_{{{\text{Mn}}}} }}{{\left( {{\text{X}}_{{{\text{Mn}}^{{2 + }} ,{\text{aq}}}} } \right)^{{{\text{X}}_{{{\text{Mn}}}} }} }}}$$
(15)

Lippmann diagram for the nonideal (Ca,Mn)CO3 solid solutions

Regarding the (Ca,Mn)CO3-H2O SS-AS system, the extent of nonideality and the stability field have been unequivocally established [2]. Several works reported componential ranges from the total miscibility between CaCO3 and MnCO3 to restricted solid solubilities with diverse ranges of miscibility gaps [57, 58]. CaCO3 and MnCO3 are suggested to form a complete series, but many of the intermediate MnxCa1-xCO3 compositions are metastable or unstable under ambient conditions [4]. Therefore, the (Ca,Mn)CO3 solid solution is accepted to be nonideal and incomplete at 25 °C; however, it is frequently considered regular. Thus, the estimated values of a0 found in the literature for this solid solution differ enormously. For example, a theoretically derived a0 =  +3.23 (25 °C) was proposed [10], while a0 = − 1 ± 3 at 20 °C was calculated from experimental solubility data [4]. A negative value of a0 (− 3.5 at 5 °C) was also estimated from observations on natural phase relations in marine anoxic sediments [18]. The a0 parameter was calculated from the miscibility gap [15] to be a0 < 2 at 25 °C [16]. Experimental studies under ambient conditions [5] and high temperatures [59] have shown that a regular model was probably insufficient to strictly describe thermodynamic equilibrium in this system. The two-parameter Guggenheim expansion equations (“subregular” models) were effectively applied to fit the experimental solubilities of (Sr,Ca)CO3-H2O, (Ba,Sr)CO3-H2O, and (Ca,Mg)CO3-H2O systems [16]. Therefore, in the absence of more precise data, the (Ca1-xMnx)CO3 solid solutions were assumed to be subregular, and the two Guggenheim coefficients a0 and a1 were calculated in this work.

The solid activity coefficients of CaCO3 (\({\gamma }_{\text{Ca}}\)) and MnCO3 (\({\gamma }_{\text{Mn}}\)) in terms of solid components (1−x, x) can be estimated by the Redlich and Kister equations [50, 54, 60], which are expressed as:

$${\text{ln}} \gamma_{{{\text{Ca}}}} = \, \left( {{1} - {\text{x}}} \right)^{{2}} \left[ {a_{0} {-}a_{1} \left( {{\text{3x}} - \left( {{1} - {\text{x}}} \right)} \right) \, + \, \ldots } \right]$$
(16)
$$\ln \gamma_{{{\text{Mn}}}} = {\text{x}}^{{2}} \left[ {a_{0} {-}a_{1} \left( {{3}\left( {{1} - {\text{x}}} \right) - {\text{x}}} \right) \, + \ldots } \right]$$
(17)

where 1−x and x are the molar ratios (\({\mathrm{X}}_{\text{Ca}}\) and \({\mathrm{X}}_{\text{Mn}}\)) of CaCO3 and MnCO3 in the (Ca1-xMnx)CO3 solid solutions, respectively.

When the stoichiometric saturation state was reached during dissolution, the excess free energy of mixing for the (BxC1-x)A solid solutions (GE) can be estimated with the following:

$$G^{{\text{E}}} = {\text{ RT}}\left[ {{\text{lnK}}_{{{\text{SS}}}} - {\text{ x }}\left( {{\text{lnK}}_{{{\text{CA}}}} + {\text{ lnx}}} \right) \, - \, \left( {{1} - {\text{x}}} \right) \, \left( {{\text{lnK}}_{{{\text{BA}}}} + {\text{ ln}}\left( {{1} - {\text{x}}} \right)} \right)} \right]$$
(18)

where KSS is the stoichiometric saturation constant and KCA and KBA are the solubility products of CA and BA, respectively [34, 50]. The Guggenheim expansion equation for GE is:

$$G^{{\text{E}}} = {\text{ x}}\left( {{1} - {\text{x}}} \right){\text{ RT }}\left[ {a_{0} + a_{1} \left( {{\text{x}} - \left( {{1} - {\text{x}}} \right)} \right) \, + a_{2} \left( {{\text{x}} - \left( {{1} - {\text{x}}} \right)} \right)^{{2}} \ldots } \right]$$
(19)

where a0, a1 and a2 are dimensionless Guggenheim coefficients that usually express the excess free energy of solid solutions in terms of their solid components. Combining Eqs. (18) and (19) and rewriting them for the (Ca1-xMnx)CO3 solid solutions while using only the coefficients a0 and a1 yields:

$${\text{Ln}}K_{{{\text{sp}}}} = {\text{ x}}\left( {{1} - {\text{x}}} \right)a_{0} + {\text{ x}}\left( {{1} - {\text{x}}} \right)\left( {{\text{x}} - \left( {{1} - {\text{x}}} \right)} \right)a_{1} + \, \left( {{1} - {\text{x}}} \right){\text{ ln}}\left[ {\left( {{1} - {\text{x}}} \right){\text{ K}}_{{{\text{Ca}}}} } \right] \, + {\text{ x ln}}\left[ {{\text{x K}}_{{{\text{Mn}}}} } \right)]$$
(20)

When the stoichiometric saturation state was reached during dissolution, a0 and a1 can be calculated by:

$${\text{Ln}}K_{{{\text{sp}}}} = {\text{ x}}\left( {{1} - {\text{x}}} \right)a_{0} + {\text{ x}}\left( {{1} - {\text{x}}} \right)\left( {{\text{x}} - \left( {{1} - {\text{x}}} \right)} \right)a_{1} + \, \left( {{1} - {\text{x}}} \right){\text{ ln}}\left[ {\left( {{1} - {\text{x}}} \right){\text{ K}}_{{{\text{Ca}}}} } \right] \, + {\text{ x ln}}\left[ {{\text{x K}}_{{{\text{Mn}}}} } \right)]$$
(21)

The log_IAP values (≈log_Ksp) for the final three solutions after 2400–7200 h dissolution in N2-degassed, air-saturated and CO2-saturated ultrapure waters were plotted versus XMn of the (Ca1-xMnx)CO3 solid solutions in Additional file 1: Appendix S9, showing that the experimental log_Ksp values were near and slightly lower than those of an ideal (Ca1-xMnx)CO3 solid solution. The Ksp values as a function of XMn could be very well fitted to Eq. (21) with the two-parameter Guggenheim models of a0 = 2.96 and a1 = − 0.20, a0 = 2.92 and a1 = − 0.33 and a0 = 3.28 and a1 = 0.61, respectively. Moreover, the dimensionless Guggenheim parameters were also estimated based on the miscibility gap mole fractions of MnCO3 (XMn = 0.11 and 0.83) at 25 °C after the powder XRD measurements by using the computer code MBSSAS [61] to be a0 = 2.52 and a1 = − 0.19. It is obvious that the estimated Guggenheim parameters in the present work were comparable to a0 =  + 3.23 [10] and were therefore chosen to construct the Lippmann diagrams of the (Ca1-xMnx)CO3 solid solutions.

Solid solution–aqueous solution interaction

The study of the precipitation behavior in the (Ca,Mn)CO3-H2O system at 25 °C was stated in the literature as being quite problematic [2, 11]. The main reason was that several authors report different values for the solubility product of rhodochrosite (log_KMnCO3) that vary between − 9.47 and − 12.19 [5, 44]. As a result, there existed a significant discrepancy concerning the calculation of the solidus and solutus curves [2]. Figure 9a illustrates the Lippmann diagrams of the (Ca1-xMnx)CO3 solid solutions at 25 °C, computed with the subregular solid solution (a0 = 2.97 and a1 = − 0.27) and the calcite and rhodochrosite endmembers from the present study (log_KCaCO3 = − 8.44 and log_KMnCO3 = − 10.26, respectively). Along with the solutus and solidus curves, the stoichiometric saturation curves of pure CaCO3 (XMn = 0), the (Ca1-xMnx)CO3 solid solutions (XMn = 0.21, 0.42, 0.61 and 0.82) and pure MnCO3 (XMn = 1) were also plotted in the Lippmann diagram, which was characterized by the peritectic point at \({\text{X}}_{{\text{Mn}}^{2+}\text{,aq}}\) = 0.00744. At this point, the aqueous component was in equilibrium with two solid phases (XMn = 0.04 and 0.57) at the same time, which defined the two extremes of the miscibility gap [2].

Fig. 9
figure9

Lippmann diagram of the nonideal (Ca1-xMnx)CO3 solid solutions together with the plot of some stoichiometric saturation curves and the experimental data

Additionally, the data of this work were also plotted as ({Ca2+} + {Mn2+}){CO32−} versus \({\text{X}}_{{\text{Mn}}^{2+}\text{,aq}}\) (Fig. 9). An increase in the released Ca2+ concentration and the highest Mn2+ concentration for the solids were generally viewed in the dissolution progress [4]. The experimental data points indicated that the (Ca1-xMnx)CO3 solid solutions dissolved incongruently and moved progressively up to the solutus curve and then along the solutus curve and/or the saturation curve of pure MnCO3 from right to left. The aqueous Mn-poor solutions were finally in equilibrium with the MnCO3-rich solids. Because the dissolution of the (Ca1-xMnx)CO3 solid solutions was superimposed with the formation of new solid phases with a larger XMn than the initial solids, the overall dissolution became progressively incongruent for the solid samples (CR-01–CR-09), as reported for Ca0.75Mn0.25CO3 and Ca0.25Mn0.75CO3 [4]. The congruent dissolution part for the solids (CR-01–CR-09) was not detected, most likely due to the very high effective surface of the initial solids that caused quick dissolution and acted as the seeds for forming new solid phases [4]. Generally, the saturation curve for MnCO3 and the solutus curve for the (Ca1-xMnx)CO3 solid solutions were progressively approached and exceeded during the SS-AS interaction (Fig. 9). The saturation indexes (SI) for rhodochrosite [MnCO3] increased as XMn increased, and the aqueous solutions were saturated or oversaturated with rhodochrosite [MnCO3] at the end of dissolution at XMn > 0.5 (CR-05–CR-10). The aqueous solutions were finally slightly oversaturated with calcite [CaCO3], with the exception of CR-09 (XMn = 0.92). The highest SI value with respect to calcite [CaCO3] was observed at XMn = 0.63 (CR-06) and then decreased as XMn decreased or increased (Additional file 1: Appendix S10). These results provide deeper insight into the mechanisms of the geochemical cycle of manganese in the environment.

Conclusions

The crystal morphologies of synthesized (Ca1-xMnx)CO3 solid solutions varied from blocky spherical crystal aggregates to smaller spheres following an increasing incorporation of Mn in the solids. The crystals grown from starting aqueous solutions with almost equal concentrations of Mn2+ and Ca2+ exhibited double peaks that corresponded to the reflections of calcite and rhodochrosite peaks in the XRD patterns and showed clear oscillatory concentric zoning, indicating core-to-rim compositional and crystalline heterogeneities in the solids. The central part of the crystal was always relatively rich in Mn. Surrounding this core were successive Ca-rich and Mn-rich rings.

Regarding the dissolution of the (Ca1-xMnx)CO3 solid solutions in N2-degassed ultrapure water and air-saturated water, the aqueous Ca and HCO3 + CO3 concentrations increased up to their highest values after 1240–2400 h. The aqueous Mn concentrations and the aqueous Mn/(Ca + Mn) mole ratios increased up to the highest value after 6–12 h of dissolution and then decreased gradually to a steady state. Regarding dissolution in CO2-saturated water, the aqueous Ca and Mn concentrations reached maximum values within 1 h and then decreased to the steady state. The aqueous pH and Mn concentrations increased with the increasing XMn of the (Ca1-xMnx)CO3 solid solutions, while the aqueous Ca and HCO3 + CO3 concentrations showed the highest values at XMn = 0.53–0.63.

The average log_IAP values at the final steady state of dissolution (≈log_Ksp) and the ΔGf° values were estimated to be − 8.44 ~ − 8.59 and − 1129.63 ~ − 1130.48 kJ/mol, respectively, for calcite [CaCO3] and − 10.25 ~ − 10.28 and − 814.39 ~ − 814.59 kJ/mol for rhodochrosite [MnCO3], respectively. As XMn increased, the log_IAP values almost linearly decreased.

The plotting of the experimental data as Lippmann diagrams for the subregular (Ca1-xMnx)CO3 solid solutions indicated that the solids dissolved incongruently and moved progressively up to the solutus curve and then along the solutus curve and/or the saturation curve of pure MnCO3 from right to left. The microcrystalline cores of the spherical crystal aggregates were preferentially dissolved to form cavities while simultaneously precipitating Mn-rich hexagonal prisms.
