Skip to main content
  • Research article
  • Open access
  • Published:

Pyrite-induced hydroxyl radical formation and its effect on nucleic acids



Pyrite, the most abundant metal sulphide on Earth, is known to spontaneously form hydrogen peroxide when exposed to water. In this study the hypothesis that pyrite-induced hydrogen peroxide is transformed to hydroxyl radicals is tested.


Using a combination of electron spin resonance (ESR) spin-trapping techniques and scavenging reactions involving nucleic acids, the formation of hydroxyl radicals in pyrite/aqueous suspensions is demonstrated. The addition of EDTA to pyrite slurries inhibits the hydrogen peroxide-to-hydroxyl radical conversion, but does not inhibit the formation of hydrogen peroxide. Given the stability of EDTA chelation with both ferrous and ferric iron, this suggests that the addition of the EDTA prevents the transformation by chelation of dissolved iron species.


While the exact mechanism or mechanisms of the hydrogen peroxide-to-hydroxyl radical conversion cannot be resolved on the basis of the experiments reported in this study, it is clear that the pyrite surface promotes the reaction. The formation of hydroxyl radicals is significant because they react nearly instantaneously with most organic molecules. This suggests that the presence of pyrite in natural, engineered, or physiological aqueous systems may induce the transformation of a wide range of organic molecules. This finding has implications for the role pyrite may play in aquatic environments and raises the question whether inhalation of pyrite dust contributes to the development of lung diseases.


Earlier studies have shown that pyrite/aqueous suspensions generate hydrogen peroxide (H2O2) in the absence of oxygen [1] and during pyrite oxidation [2]. While the formation of H2O2 has been established in pyrite suspensions, its fate is not clear. Borda and coworkers reported a single experiment in which the formation of hydroxyl radical was inferred on the basis of the transformation of a radical scavenger [3]. Cohn and coworkers speculated that the H2O2 reacts with ferrous iron to form hydroxyl radicals (OH) via a Fenton reaction mechanism [4]. This notion was based on two sets of experimental observations. Firstly, RNA is readily degraded in pyrite/aqueous suspensions [4]. Secondly, RNA is stable in the presence of H2O2 [5], but degrades rapidly in the presence of OH [6, 7]. The latter observation is also consistent with experimental data correlating particle-induced OH formation and carcinogenesis and oxidative stress [8, 9]. Reactive oxygen species include H2O2 and the particularly reactive OH. The extreme reactivity of OH has been implicated in several diseases [10, 11] and the reactivity of OH toward organics has been exploited in the remediation of organic solvents [12, 13].

In this contribution, the hypothesis that pyrite-generated H2O2 will react with ferrous iron at the pyrite surface or dissolved from pyrite is tested. Evidence for the formation of OH is presented. This evidence is based on a combination of conventional electron spin resonance spectroscopic (ESR) methods to detect OH and the kinetics of the degradation of nucleic acids (RNA and DNA) in pyrite/aqueous suspensions. The results of this study may explain the reactivity of pyrite towards other biomolecules, such as purine nucleosides and formate [14]. The spontaneous formation of OH in pyrite slurries may also be used to develop environmental remediation strategies. Within the last decade, in situ organic pollutant oxidation techniques based on a reaction between hydrogen peroxide and iron-containing oxides have been developed [12, 1518] and applied in the field [19]. This finding suggests that pyrite may be an effective alternative to iron oxides in these applications.


In this section the pathways that can lead to H2O2 formation in pyrite slurries and the transformation of H2O2 to OH via the Fenton reaction are briefly summarized.

Formation of H2O2in pyrite slurries

The presence or absence of molecular oxygen (O2) dictates the reaction pathways that are possible for the formation of H2O2. In the presence of O2, the formation of H2O2 in pyrite slurries may proceed via two non-exclusive pathways. As pyrite is dispersed in water, ferrous iron will readily be released to solution. Dissolved O2 reacts with dissolved Fe(II) via the Haber-Weiss reaction mechanism and forms H2O2 (eqs 1 and 2) with superoxide (O2)- as an intermediate species.

FeII(aq) + O2 → FeIII(aq) + (O2)-     (1)

FeII(aq) + (O2)- + 2H+ → FeIII(aq) + H2O2     (2)

This homogeneous pathway is complemented by a very similar reaction in which O2 is reduced by surface-bound Fe(II) (eqs 3 and 4). In the system of interest here, surface-bound ferrous iron can be either Fe(II) that is part of the pyrite crystal structure or sorbed onto the pyrite surface.

FeII(pyrite) + O2 → FeIII(pyrite) + (O2)-     (3)

FeII(pyrite) + (O2)- + 2H+ → FeIII(pyrite) + H2O2     (4)

On the pyrite surface this sequence of reactions may be effectively accomplished by a single two-electron transfer reaction involving two Fe(II) atoms. By contrast, the homogeneous reaction (eqs 1 and 2) has to proceed as two separate one-electron transfer reactions because each ferrous iron can only donate one electron. In addition, the ferric iron species formed on pyrite may readily be reduced by the pyrite substrate. This reduction would make it possible to rapidly cycle the iron between the two oxidation states with O2 as the terminal electron acceptor. As a result, the reaction on the pyrite surface is expected to be much faster. This notion is supported by experimental results for other electron transfer processes mediated by mineral surfaces [20].

Borda et al. [3] showed that pyrite can also generate H2O2 in the absence of molecular oxygen. On the basis of experiments with isotopically labelled water, they proposed that the formation is driven by a reaction between water and a sulphur-deficient defect on the pyrite surface. In brief, bulk pyrite is composed of ferrous iron and disulfide. Sulfur in the disulfide moiety has an oxidation state of -I. However, surface science studies show that sulphur-deficient defects are common on pyrite [2123]. The sulphur associated with these defects is sulphur with a -II oxidation state [2426]. In order to maintain charge, this requires that some of the iron is nominally present in the +III state. X-ray photoelectron spectroscopy (XPS) results presented by Borda et al [3] show the presence of some Fe(III) on the pyrite surface. These Fe(III) surface species are reduced to Fe(II) species upon exposure to water. In this reaction an electron is extracted from water and a hydroxyl radical is formed. Combining two hydroxyl radicals leads to the formation of H2O2. Hence, the overall pathway in the absence of oxygen may be represented as:

FeIII(pyrite) + H2O → FeII(pyrite) + OH + H+     (5)

2OH → H2O2     (6)

The Fe(III) coordinated by disulfide groups is energetically highly unfavourable, while the pyrite structure with iron in the divalent state is energetically very favourable. The reaction may be promoted by this difference in energy.

Fenton reaction

The Fenton reaction refers to the transformation of H2O2 to OH via a reaction involving ferrous iron (eq. 7). The rapid and quantitative reaction converts H2O2 to OH [27]. If ferric iron formed in the reaction is reduced, then the ferrous iron is recycled and it acts as a catalyst. The Fenton reaction is widely used in the biomedical research community to generate OH. By binding a ferrous iron complex onto a particular section of a nucleic acid sequence it is possible to induce strand scissions at specific locations [2830]. Generating OH is often accomplished by mixing a ferrous salt solution, typically ferrous ammonium sulfate, with a dilute hydrogen peroxide solution. If a reductant, such as ascorbic acid is added, the Fe(III) can be recycled back to Fe(II) (eq. 8). The overall process can be represented by the following two reactions:

FeII(aq) + H2O2OH + OH- + FeIII(aq)     (7)

FeIII(aq) + Reductant → FeII(aq) + Reductant+     (8)

While the Fenton reaction, as represented by equations 7 and 8, is a homogeneous reaction, the reaction can also proceed when ferrous iron is present as a solid. For example, Watts and coworkers [15] have shown that magnetite facilitates the conversion of H2O2 to OH via the Fenton reaction mechanism. Even Fe(III)-oxides and (oxy)hydroxides can facilitate the reaction albeit less effectively than magnetite [15, 31]. For Fe(III)-oxide minerals, Fe(III) may be reduced in the presence of H2O2 through the following reaction:

FeIII(oxide mineral) + H2O2 → FeII(oxide mineral) + (O2)- + 2H+     (9)

Hence, in this study we propose that pyrite can promote the Fenton reaction. Given the rapid oxidation and release of iron into solution when pyrite is dispersed in water, pyrite may promote the Fenton reaction by providing dissolved iron or via a surface reaction. Regardless whether the Fenton reaction takes place in solution or on its surface, pyrite can readily reduce ferric iron. The reaction between dissolved ferric iron and pyrite has been studied extensively in the context of acid mine drainage [32, 33]. The semiconducting properties of pyrite [34] allow for rapid reduction of ferric iron that is either formed on the surface or that adsorbs onto its surface.

Research strategy

Demonstrating the presence of radical species, including OH, in any system is a challenge given the fact that these species are very short-lived. The most commonly used detection technique for mineral-generated OH is electron spin resonance [ESR, also known as electron paramagnetic resonance (EPR)] using 5, 5-dimethyl, 1-pyrroline N-oxide (DMPO) as a spin-trap. The lifetime of OH is on the order of a few nanoseconds, but its reaction through addition with DMPO results in the lone electron being trapped on DMPO to form the DMPO-OH radical adduct. The adduct has a much longer lifetime and can be detected. The problem with using ESR spin-trapping with DMPO is its susceptibility to artifacts. In the case of studies involving iron-bearing minerals, it is important to note that the presence of ferric iron can induce the formation of a DMPO-OH adduct in the absence OH [35]. However, there is a standard protocol to verify the presence of radicals. In this protocol another reactant, which acts as a radical scavenger (e.g., ethanol), is added to compete with DMPO for reaction with OH. When ethanol is used as a radical scavenger, its reaction with OH forms the α-hydroxyethyl radical that adds to DMPO resulting in the DMPO-CH(CH3)OH adduct [35]. In the absence of OH, but in the presence of ferric iron (or other nucleophiles), ethanol will attack DMPO by addition with its oxygen and not carbon moiety. This then results in the formation of a DMPO-OCH2CH3 adduct [35]. The DMPO-CH(CH3)OH and DMPO-OCH2CH3 adducts have different ESR spectra. Hence, in this study we conducted an array of spin-trapping experiments to conclusively demonstrate the formation of OH in pyrite slurries.

While ESR spin-trapping is the standard method in demonstrating the formation of radical species, it is difficult to conduct spin-trap experiments under strictly anaerobic conditions due to the size of the instrument. Furthermore, the technique provides an indication of the type of radical(s) present and approximate concentrations, but the technique does not lend itself easily to compare a suite of minerals or reaction conditions.

In this study, we used several methods that rely on the interaction of OH with nucleic acids to complement the spin-trapping experiments. Minerals that induce the formation of OH have been shown to cause strand breakage in DNA [9, 36], which is of interest in genotoxicology (for review see [36]). In previous studies, we have employed short-strand yeast RNA as a probe for mineral-generated OH [37]. OH preferentially attacks the deoxyribose moieties in DNA or RNA strands. The resulting shortening of the strands can be detected using various techniques, see method section below. In this study, we used several different experimental procedures to detect strand shortening of RNA and/or DNA exposed to pyrite slurries. Experiments with yeast RNA were performed to evaluate whether pyrite's reactivity toward nucleic acids is limited to a single burst upon exposure to an aqueous solution. Yeast RNA was exposed to pyrite and after more than 98% of the RNA was undetected, a new solution of RNA was added to the pyrite. The experiments with ribosomal RNA and DNA were performed to evaluate their stabilities in the presence of pyrite as a function of time and as a function of total surface area of pyrite, respectively.

Control experiments with RNA exposed to dissolved ferrous iron were conducted to evaluate the importance of mechanisms involving dissolved iron versus mechanisms involving the pyrite surface. In these experiments, ferrous and ferric iron concentrations were measured at the beginning and end of experiments with RNA. In one experiment, EDTA was added to an experiment with dissolved ferrous iron. This experiment was conducted to evaluate the role of EDTA on the rate of RNA degradation. To provide the basis for a comparison to the degradation rate in the presence of pyrite, dissolved iron concentrations in an experiment where RNA was added to a pyrite suspension was also measured at the start and end of the experiment. These control experiments were conducted in the presence of molecular oxygen.

Materials and methods

Pyrite sample preparation

All experiments were performed at room temperature (25 ± 2°C) with natural pyrite (Huanzala, Peru) obtained from Wards. All pyrite used in this study was crushed at the same time. After crushing it was washed with acid to remove surface oxides using a protocol described in earlier work [4]. The size fraction used in these experiments was between 10 to 90 μm with a five-point N2 adsorption BET surface area of roughly 1.25 m2/g. This BET surface area is an approximation due to the inherent variations for low surface area measurements [38]. Anaerobic experiments were performed in a glove box (Coy Laboratory Products) with Pd catalyst and O2 meter in the presence of nitrogen/hydrogen (95%/5%) gas. The concentration of molecular oxygen in N2-purged solutions was determined using a polarographic O2 probe (Orion).

Hydrogen peroxide quantification

The H2O2 quantification technique for iron-containing solutions is described in detail elsewhere [39]. In brief, H2O2 oxidizes leuco crystal violet (LCV) (Spectrum) in the presence of the enzyme horseradish peroxidase (HRP type II) (Sigma) forming a crystal violet cation, which has an absorbance maximum around 590 nm [40]. Calibration curves were used to compensate for pH, ferrous iron, and EDTA. Varying amounts of pyrite were mixed with water in the absence or presence of 1 mM EDTA and immediately filtered (Millipore 0.45 μm). Catalase [Sigma (4 to 60) × 104 units/mg bovine liver] selectively degrades H2O2 and was used to verify that LCV oxidation was due solely from H2O2. Reagents were added to the aqueous filtrate in the following order with final concentrations: 100 mM KH2P4 pH buffer, 41 μM LCV (dissolved with HCl), and 1 μg HRP.

ESR spin-trapping

The spin trap 5, 5-dimethyl, 1-pyrroline N-oxide (DMPO) was purified with activated carbon (Fisher). All spin trap experiments were conducted with a Bruker EMX ESR equipped with an Aqua-X liquid cell. Pyrite samples were exposed to DMPO solutions (for about 15 seconds), immediately filtered, injected into the liquid cell and immediately analyzed at room temperature (25 ± 2°C) in the presence of O2. The spectrometer settings are as follows: magnetic field of 3470 ± 100 G, microwave power of 20 mW, modulation frequency of 100 kHz and amplitude of 1 G, receiver gain of 2 × 105, time constant of 0.64 sec, and scan time of 2 min 47 sec. Reagents and final concentrations during analyses: DMPO (Sigma) 100 mM, H2O2 120 μM, ferrous ammonium sulfate 25 μM, EtOH 30%, iron (III) sulfate pentahydrate 100 μM, pyrite 25 mg in 2 mL of solution.

Nucleic acid quantification and visualization

Yeast RNA (Spectrum) was mixed with water, followed by centrifugation (4°C, 4500 × g, 5 min) and filtration (0.45 μm) to remove impurities. Experiments with pyrite were performed in 50-mL centrifuge tubes. 10 g/L pyrite was added to a 1.5 mg/L RNA solution, stirred and centrifuged (4°C, 4500 × g, 5 min) before sampling. RNA was quantified by using a molecular probe specifically designed for RNA (RiboGreen from Invitrogen). RiboGreen was added to solution aliquots following the manufacturers' protocol. Fluorescence measurements were conducted using a Picofluor instrument (Turner designs; excitation: 475 ± 15 nm, emission: 515 ± 10 nm). With this protocol it is possible to measure RNA strands with less than 100 bases [41]. When the initial RNA concentration had dropped to less than 98% (i.e., fragments were too small to interact with the probe), the RNA solution was replaced by a fresh solution. To avoid any exposure of the slurry to air, the vials were tightly closed in the anaerobic glove box, then centrifuged outside the glovebox. After this step, the vials were immediately placed back into the glove box, the supernatant decanted, and new N2-purged RNA solution added. After replacing the RNA solution, the periodic sampling and analysis protocol was resumed. In addition to using a molecular probe to quantify RNA, we also determined the RNA concentration using UV-Vis spectroscopy. Wavelength scans from 240 nm to 294 nm were performed on a Hach DR4000 spectrometer. Nucleic acid bases have an absorbance maximum at 260 nm. Ferrous iron dissolved from the pyrite surface absorbs light in this region with more light absorption as the wavelength decreases. A similar background absorbance occurs with RNA solutions. In order to simplify interpretation of the results, this sloped background absorbance has been subtracted from all of the curves.

To corroborate the studies using the RNA molecular probe or UV-Vis spectroscopy, we also conducted experiments with human ribosomal RNA and circular plasmid DNA. The experiments with human ribosomal RNA were performed by vortexing 60 g/L pyrite and 100 mg/L human ribosomal RNA extracted from HeLa cells (carcinoma cell line). The experiments were conducted in 2-mL centrifuge tubes. After periodic centrifugation and sampling, agarose gel electrophoresis was performed on the aqueous phase. Except for centrifugation and analysis, the experiment was performed in an anaerobic glove box. Using the same protocol, an experiment was carried out with circular plasmid DNA [5.5 kb in size pCDNA3 (Invitrogen) propagated in E.coli DH5-alpha and purified by HiSpeed Plasmid Maxi Kit (Qiagen)]. Unlike the experiment with human ribosomal RNA, the experiment with circular plasmid DNA was conducted in the presence of dissolved molecular oxygen.

Dissolved iron analysis

Ferrous and ferric iron were quantified using HACH UV-Vis spectroscopic methods using 1, 10 phenanthroline and ferrozine, respectively. All analyses were conducted on filtered samples (0.45 μm pore size).


Results indicate that in an aqueous suspension, pyrite induces the spontaneous formation of H2O2 and OH. Nucleic acids added to pyrite suspensions degrade rapidly. Experiments with EDTA added to the pyrite suspensions demonstrate that the addition of this ligand stabilizes H2O2 and prevents OH formation and nucleic acid degradation.

Pyrite-induced formation of hydrogen peroxide and hydroxyl radicals

Pyrite/aqueous suspensions spontaneously generate H2O2. In these experiments, pyrite was mixed with water containing EDTA and immediately filtered. Due to reaction of unchelated Fe(II) with H2O2 or to reaction of chelated Fe(II) with H2O2, increasing the reaction time reduces the concentration of H2O2 (Table 1). As seen in Table 1, the H2O2 concentrations increase proportional to particle loading. Catalase enzymatically degrades H2O2 to form O2 and H2O without the formation of radicals. When catalase is added to the pyrite suspension before analysis, H2O2 is not observed, which is consistent with H2O2 being the sole LCV oxidizer. Similar experiments performed in absence of O2 showed no detectible H2O2 (the detection limit for the LCV technique is about 0.5 μM; we are currently working on developing a protocol that will allow detection of H2O2 at nanomolar levels). In the presence of O2, H2O2 is only detected when the iron chelator, EDTA is added. In the absence of EDTA, H2O2 is not observed. The lack of H2O2 when iron is not chelated with EDTA suggests that most H2O2 formed in pyrite suspensions is rapidly transformed to OH. This rapid loss keeps the level of H2O2 below the detection limit of the LCV method. A second set of experiments to evaluate the stability of H2O2 in the presence of ferrous iron and ferrous iron with EDTA is presented in the bottom half of Table 1. When 10 μM Fe(II) is added to a 10 μM H2O2 solution, the H2O2 concentration is reduced to 4.2 μM. However, when 10 mM EDTA is added, H2O2 is stabilized.

Table 1 H2O2 Measurements*

To evaluate whether pyrite generates OH when it is suspended in water, experiments were performed using ESR spin-trapping in the presence of dissolved molecular oxygen. OH reacts with the spin-trap DMPO forming the DMPO-OH radical adduct, which displays a four-line spectrum (Fig. 1A). In the absence of OH, the DMPO-OH adduct can also be formed via the interaction of the spin trap with ferric iron (B). In the presence of OH, ethanol reacts with OH to form the DMPO-CH(CH3)OH adduct (C). If ethanol is added to a solution of DMPO and ferric iron (i.e., no OH present), ethanol adds to DMPO resulting in the DMPO-OCH2CH3 adduct (D). DMPO-OCH2CH3 and DMPO-CH(CH3)OH exhibit different spectra (compare C and D). When DMPO is in the presence of pyrite, DMPO-OH is formed (E). Pyrite slurries contain trace amounts of ferric iron, so an experiment with ethanol is necessary. With ethanol, two sets of peaks result, one from the DMPO-OH adduct and one from the DMPO-CH(CH3)OH adduct (F), confirming the presence of OH. While these experiments clearly show that pyrite generates OH in the presence of water, it is not possible to determine the absolute concentration of the radical using the protocol presented above.

Figure 1
figure 1

ESR spin-trapping with 100 mM DMPO. The structure of DMPO adducts are drawn on the figure. Fenton generated (125 μM H2O2 & 25 μM Fe2+) OH reacts with DMPO to form the DMPO-OH radical adduct (A). In the absence of OH, ferric iron (100 μM) also produces the DMPO-OH radical adduct (B). Reaction of OH with 30% ethanol results in the DMPO-CH(CH3)OH radical adduct (C). In the absence of OH, but presence of 100 μM ferric iron and ethanol, DMPO-OCH2CH3 results (D). Pyrite (12.5 g/L) mixed with DMPO (without addition of H2O2) shows formation of DMPO-OH (E). The addition of ethanol reveals peak contributions from the DMPO-OH (marked with plus signs) and OH-dependant DMPO-CH(CH3)OH radical adducts (marked with asterisks) (F). The experiment was conducted in the presence of O2. The raw ESR data are available as an additional file, Cohn_Fig 1 ESR data.XLS.

Pyrite-induced degradation of nucleic acids

The reactivity of pyrite-generated OH toward nucleic acids was evaluated in the presence and absence of molecular oxygen. Figure 2 shows the pyrite-induced degradation of yeast RNA in the absence of molecular oxygen. The pyrite maintains this reactivity toward RNA even after the supernatant RNA solution is continuously refreshed. To investigate whether addition of an iron chelator will affect the degradation of RNA, EDTA was added. In the presence of EDTA, RNA remained stable, indicating that iron is necessary for the RNA-degradation mechanism. The source of iron is from the pyrite surface, but the mechanism may involve surface-bound iron or dissolved iron. The results are corroborated by those obtained with much larger RNA (i.e., ribosomal RNA) and analyzed using gel electrophoresis. Gel electrophoresis of human ribosomal RNA exposed to pyrite shows a decrease in the RNA fragment size and quantity over time in the absence of dissolved oxygen (Fig. 3a). A similar stabilization of RNA with EDTA (Fig. 3b) is seen here compared to the experiment with yeast RNA. Experiments were also carried out to address the effects of pyrite on DNA but with a different kind of experiment. Here, DNA was exposed to varying amounts of pyrite in the presence of molecular oxygen and samples were taken four hours after incubation. Results show greater DNA degradation with increasing amounts of pyrite (Fig. 4).

Figure 2
figure 2

Decomposition of 1.5 mg/L yeast RNA in the presence of 10 g/L pyrite. RNA was exposed to pyrite in the absence of O2. Samples were taken after centrifuging the vials to prevent loss of pyrite. Upon 98% decomposition of RNA, the aqueous phase was removed and replaced with a fresh RNA solution. The experiment was continued beyond that shown. After seven days and three more replacements of the RNA solution, RNA continued to be degraded but at a slower rate. For comparison, an experiment with pyrite and RNA and the addition of 1 mM EDTA shows no loss in RNA.

Figure 3
figure 3

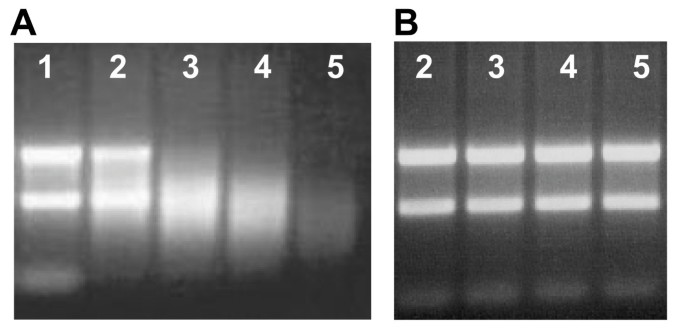

Agarose gel electrophoresis of human ribosomal RNA (100 mg/L) vortexed with 60 g/L pyrite. A: Periodic sampling of the pyrite/rRNA suspension (samples were centrifuged to remove pyrite particles). Lane 1 contained ribosomal RNA (the two bright fluorescent bands are due to 28S and 18S ribosomal moieties). Lanes 2–5 contain pyrite with samples taken after twenty seconds (2), thirty minutes (3), one hour (4), and two hours (5). B: Same procedure as A, however, in the presence of 10 mM EDTA (lane numbers correspond to the same exposure times as in A). The negatively-charged RNA samples were loaded at the top of the agarose gels. When a voltage is applied across the gel, the RNA strands travel downward with smaller strands moving faster than larger strands. The light intensity is indicative of quantity. The experiments were conducted in the absence of O2.

Figure 4
figure 4

Agarose gel electrophoresis of plasmid DNA (100 mg/L) with increasing amounts of pyrite. DNA was exposed to pyrite for 4 hrs followed by centrifugation and sampling. The first lane is plasmid DNA, lane two: 6 g/L pyrite, lane three: 64 g/L pyrite, and lane four: 640 g/L pyrite. Positions of known strand lengths are given in kilo-bases on the right side of the figure. Similar to the RNA gel electrophoresis experiment, smaller DNA fragments move faster downward on the gel when a voltage is applied and the light intensity roughly correlates to quantity. The experiment was conducted in the presence of O2.

Collectively, the experiments show that the presence of pyrite leads to a decrease in nucleic acid strand length and a loss in fluorescence intensity. The fate of the nucleic acid bases was also investigated with UV spectroscopy. Samples of the yeast RNA samples exposed to pyrite were filtered to remove pyrite particles and wavelength scans were taken. The data shows a continual decrease in the absorbance centered around 260 nm when RNA is exposed to pyrite, which is consistent with a transformation of the bases that leads to a loss of their absorptivity at this wavelength (Fig. 5). In principle, the decrease of absorbance by itself could be due to simple removal of RNA from solution by adsorption. However, while simple sorption can explain a loss of fluorescence intensity in the gels, it cannot explain the shortening of the strands observed in these experiments.

Figure 5
figure 5

UV-Vis wavelength scans of filtered yeast RNA/pyrite suspensions taken as a function of time. 1.5 mg/L yeast RNA was exposed to pyrite (1 g/L) followed by periodic sampling. Wavelength scans were taken of the filtered samples. The loss of absorbance is putatively due to degradation of the nucleic acid bases. Background absorbance not associated with the absorbance peak at 260 nm (i.e., Fe(II) dissolved from pyrite or increasing absorbance at lower wavelengths due to RNA) has been subtracted from all of the curves. The raw UV-vis data and background corrected data are available as an additional file, Cohn_Fig 5 UV.Vis.XLS.

Control experiments

The mechanisms whereby pyrite generates OH, which leads to RNA degradation, may be a combination of solution reactions [e.g., Haber Weiss (eqs 1 and 2) and Fenton (eq. 7)] and surface-mediated reactions (eq. 3 and 4). Experiments, in the absence of pyrite, were performed to determine the rate of RNA degradation as a function of dissolved ferrous iron concentration in the presence and absence of EDTA in the presence of molecular oxygen (Fig. 6). For comparison, the results of an experiment with pyrite were also included in this figure. The iron concentrations at the start and the end of these experiments are summarized in Table 2. From these experiments, it is apparent that increasing solution concentrations of ferrous iron lead to higher rates of RNA degradation. However, the dissolved ferrous iron concentrations in these homogeneous control experiments are significantly higher than for the pyrite experiment shown in Figure 6, see Table 2. Iron concentrations decrease in experiments where iron was added to the beginning of the experiment, but increase when pyrite is added to an RNA solution. These changes in dissolved iron concentrations are due to precipitation of the ferrous iron that was added to RNA and dissolution of iron from the pyrite surface, respectively. The experiment with RNA exposed to ferrous iron and EDTA shows no RNA degradation.

Table 2 Dissolved Iron Concentrations (μM)*
Figure 6
figure 6

Control experiments with dissolved ferrous iron. 1.5 mg/L yeast RNA was exposed to different ferrous iron concentrations and an experiment with the addition of 1 mM EDTA. An experiment with 1 g/L pyrite is shown for comparison. The experiment was conducted in the presence of O2.


The results of the ESR spin trapping experiments show conclusively that OH is formed spontaneously in pyrite slurries in the presence of molecular oxygen. Complementary experiments with nucleic acids show a rapid strand shortening with loss of absorbance at 260 nm (Fig. 5), which is indicative of a reaction involving the bases in the nucleic acids. In earlier work [4, 39], we showed that the rate of RNA degradation and the formation of H2O2 is proportional to the pyrite surface loading. Given that nucleic acids are rapidly decomposed by OH but stable in dilute H2O2, the results indicate that pyrite promotes the degradation of nucleic acids via a mechanism that converts H2O2 to OH. Exposure to pyrite leads to cleavage of the nucleic acid strands to a size that is eventually not detectable with RiboGreen (yeast RNA experiments Fig. 2) and too small to be retained on the agarose gels (human ribosomal RNA, Fig. 3, and circular plasmid DNA experiments, Fig. 4).

The mechanism for the H2O2-to-OH conversion is not clear. The control experiments presented in Figure 6 show clearly that the presence of the pyrite surface promotes the degradation of nucleic acids and, by extension, the formation of OH. Experiments with dissolved iron at concentrations well above those in pyrite slurries show a much slower rate of RNA degradation. This suggests that a reaction mediated by the pyrite surface promotes the degradation. The mechanism whereby dissolved ferrous iron degrades RNA may be due to Haber-Weiss and Fenton chemistry (eqs 1, 2 and 7). The finding that EDTA inhibits the decomposition of the nucleic acid, but does not prevent the formation of H2O2, suggests that the H2O2-to-OH conversion takes place primarily in solution. The rationale for this notion is that EDTA forms strong complexes with dissolved iron, which, under the conditions of these experiments, prevents the Fenton reaction from taking place (see control experiment with Fe(II) and EDTA in Fig. 6). The finding that H2O2 is formed in pyrite suspensions in the presence of EDTA and molecular oxygen precludes a strong interaction of the ligand with the pyrite surface. Electrochemical studies [42] as well as model calculations show that the transfer of electrons from the pyrite surface to adsorbed molecular oxygen takes place at iron sites on the surface [43]. If EDTA were to adsorb strongly onto the pyrite surface, the H2O2 formation via reactions 3 and 4 are expected to be inhibited. Hence, we speculate that pyrite promotes the degradation of nucleic acids and, by extension, the formation of OH by forming H2O2 at its surface which then can react with dissolved ferrous iron to form OH.

EDTA chelation may also prevent iron from binding with the RNA. Given that OH reacts almost instantaneously after it is formed, it has been suggested that sorption of iron to the nucleic acid strand is a prerequisite for its cleavage [28, 29]. This is because low concentrations of OH formed in solution may react before reaching an RNA strand. However, reaction of iron bound to the phosphate moieties of RNA with H2O2 may cause a strand cut at that location. By chelating dissolved iron, this site-specific mechanism may be inhibited.

Even though H2O2 is not detected in pyrite slurries in the absence of molecular oxygen, experiments with yeast RNA as well as human ribosomal RNA conducted in an anaerobic glove box show nucleic acid degradation. In earlier work we suggested that a reaction between water and defects on the pyrite surface can produce H2O2. Once H2O2 is produced via this pathway it is likely to be converted to OH. The levels of H2O2 formed via this defect-driven mechanism are much lower than in the presence of molecular oxygen. The low steady-state concentration of H2O2 and the limitations of the H2O2-detection technique used here may explain why H2O2 was not detected in the absence of O2. The result of experiments with yeast RNA in which the RNA solution was replaced periodically indicate that this anaerobic mechanism is not easily exhausted. If the process was limited to surface defects, one would expect that the degradation of RNA would cease after one or two cycles of fluid replacement. By contrast, the reactivity is maintained over as many as five cycles (Figure 2), although the rate of the reaction decreases. We hypothesize that the semi-conducting properties of pyrite allow defects within the bulk of the pyrite crystals to effectively migrate to the surface (note that a ferric iron in the pyrite structure is electronically equivalent to an electron hole [34], which can migrate through the conduction band to the surface [44]). Experiments to evaluate this hypothesis are underway. In addition, experiments are underway to evaluate how aging of the pyrite after crushing will influence its reactivity.

Hydroxyl radicals react non-specifically with most organic molecules. Hence, the formation of OH in pyrite slurries, as demonstrated in this study, can lead to pyrite-induced transformation of organic molecules in any environment where pyrite reacts with water. This includes environments encountered in human lungs where pyrite may be present upon inhalation of coal or mine dust. In a separate study we will report on the formation of OH in coal as a function of pyrite content. The non-specific reactivity of OH toward organic molecules may also be exploited to degrade organic pollutants. In situ, Fenton-based chemical oxidation techniques, in which dilute H2O2 is injected into aquifers, have been applied to degrade organic solvents and other persistent organic compounds [12, 13, 1517, 19, 31, 45]. In these systems, iron (oxy)hydroxides or oxides are providing the iron to drive the Fenton reaction (eq. 7). The results of this study suggest that pyrite could also be effective as a mineral Fenton catalyst. Its widespread occurrence in reduced sediments [46, 47] opens up the possibility to apply Fenton-based chemical oxidation techniques to reduced sediments. In addition, it may be possible to use injection of air to drive in situ chemical oxidation when pyrite is present in the subsurface. Finally, pyrite – a common mining waste product – may find use in ex situ engineered Fenton-based systems designed to treat water polluted with organic solvents. Although the use of pyrite in these systems may cause a secondary problem of acid production, remediation of acid may be more straightforward than degradation of an organic solvent.


On the basis of a combination of ESR spin-trapping experiments and radical scavenging experiments with nucleic acids, we conclude that OH is formed spontaneously when pyrite is dispersed in water. The formation of OH, but not the formation of H2O2, is inhibited when EDTA is added to the pyrite suspensions, which suggests that the H2O2-to-OH conversion takes place in solution. However, more research is needed to resolve the mechanism or mechanisms.


  1. Borda M, Elsetinow A, Schoonen M, Strongin D: Pyrite-induced hydrogen peroxide formation as a driving force in the evolution of photosynthetic organisms on an early Earth. Astrobiology. 2001, 1 (3): 283-288. 10.1089/15311070152757474.

    Article  Google Scholar

  2. Ahlberg E, Broo AE: Electrochemical reaction mechanisms at pyrite in acidic perchlorate solutions. Journal of Electrochemical Society. 1997, 144 (4): 1281-1286. 10.1149/1.1837584.

    Article  Google Scholar

  3. Borda MJ, Elsetinow AR, Strongin DR, Schoonen MA: A mechanism for the production of hydroxyl radical at surface defect sites on pyrite. Geochimica et Cosmochimica Acta. 2003, 67 (5): 935 -9939. 10.1016/S0016-7037(02)01222-X.

    Article  Google Scholar

  4. Cohn CA, Borda MJ, Schoonen MA: RNA decomposition by pyrite-induced radicals and possible role of lipids during the emergence of life. Earth and Planetary Science Letters. 2004, 225 (3-4): 271-278. 10.1016/j.epsl.2004.07.007.

    Article  Google Scholar

  5. Halliwell B, Aruoma OI: DNA damage by oxygen-derived species. FEBS Letters. 1991, 281 (1,2): 9-19. 10.1016/0014-5793(91)80347-6.

    Article  Google Scholar

  6. Breen AP, Murphy JA: Reactions of oxyl radicals with DNA. Free Radical Biology & Medicine. 1995, 18 (6): 1033-1077. 10.1016/0891-5849(94)00209-3.

    Article  Google Scholar

  7. Pryor WA: Why is the hydroxyl radical the only radical that commonly adds to DNA? Hypothesis: it has a rare combination of high electrophilicity, high thermochemical reactivity, and a mode of production that can occur near DNA. Free Radical Biology & Medicine. 1988, 4: 219-223. 10.1016/0891-5849(88)90043-3.

    Article  Google Scholar

  8. Donaldson K, Stone V, Borm PJA, Jimenez LA, Gilmour PS, Schins RPF, Knaapen AM, Rahman I, Faux SP, Brown DM, MacNee W: Oxidative stress and calcium signaling in the adverse effects of environmental particles (PM10). Free Radical Biology and Medicine. 2003, 34 (11): 1369-1382. 10.1016/S0891-5849(03)00150-3.

    Article  Google Scholar

  9. Vallyathan V, Shi X, Castranova V: Reactive oxygen species: Their relation to pneumoconiosis and carcinogenesis. Environ Health Perspect. 1998, 106 (S5): 1151-1156.

    Article  Google Scholar

  10. Halliwell B: Role of free radicals in the neurodegenerative diseases - Therapeutic implications for antioxidant treatment. Drugs & Aging. 2001, 18 (9): 685-716. 10.2165/00002512-200118090-00004.

    Article  Google Scholar

  11. Gilbert DL, Colton CA: Reactive Oxygen Species in Biological Systems An Interdisciplinary Approach. 1999, New York, NY , Kluwer/Plenum, 733-

    Google Scholar

  12. Watts RJ, Jones AP, Chen PH, Kenny A: Mineral-catalyzed Fenton-like oxidation of sorbed chlorobenzenes. Water Environment Research. 1997, 69 (3): 269-275.

    Article  Google Scholar

  13. Watts RJ, Teel AL: Chemistry of modified Fenton's reagent (catalyzed H2O2 propagations-CHP) for in situ soil and groundwater remediation. Journal of Environmental Engineering-Asce. 2005, 131 (4): 612-622. 10.1061/(ASCE)0733-9372(2005)131:4(612).

    Article  Google Scholar

  14. Berger M, Hazen M, Nejjari A, Fournier J, Guignard J, Pezerat H, Cadet J: Radical oxidation reactions of the purine moiety of 2'-deoxyribonucleosides and DNA by iron-containing minerals. Carcinogenesis. 1993, 14 (1): 41-49.

    Article  Google Scholar

  15. Watts RJ, Udell MD, Kong SH, Leung SW: Fenton-like soil remediation catalyzed by naturally occurring iron minerals. Environmental Engineering Science. 1999, 16 (1): 93-103.

    Article  Google Scholar

  16. Detomaso A, Lopez A, Lovecchio G, Mascolo G, Curci R: Practical applications of the Fenton reaction to the removal of chlorinated aromatic pollutants - Oxidative degradation of 2,4-dichlorophenol. Environmental Science and Pollution Research. 2003, 10 (6): 379-384.

    Article  Google Scholar

  17. Nesheiwat FK, Swanson AG: Clean contaminated sites using Fenton's reagent. Chemical Engineering Progress. 2000, 96 (4): 61-66.

    Google Scholar

  18. Teel AL, Warberg CR, Atkinson DA, Watts RJ: Comparison of mineral and soluble iron Fenton's catalysts for the treatment of trichloroethylene. Water Research. 2001, 35 (4): 977-984. 10.1016/S0043-1354(00)00332-8.

    Article  Google Scholar

  19. EPA US: Field Applications of In Situ Remediation Technologies: Chemical Oxidation. 1998, Washington D.C. , EPA

    Google Scholar

  20. Schoonen MAA, Strongin DR: Catalysis of electron transfer reactions at mineral surfaces. Environmental Catalysis. Edited by: Grassian V. 2005, Boca Raton, Fl , CRC Press, 37-60.

    Chapter  Google Scholar

  21. Guevremont J, Strongin DR, Schoonen MAA: Effects of surface imperfections on the binding of CH3OH and H2O on FeS2(100): using adsorbed Xe as a probe of mineral structure. Surface Science. 1997, 391 (1-3): 109-224. 10.1016/S0039-6028(97)00461-5.

    Article  Google Scholar

  22. Guevremont JM, Strongin DR, Schoonen MAA: Photoemission of adsorbed xenon, X-ray Photoelectron spectroscopy, and Temperature-Programmed Desorption studies of H2O on FeS2(100). Langmuir. 1998, 14 (6): 1361-1366 .. 10.1021/la970722c.

    Article  Google Scholar

  23. Guevremont JM, Strongin DR, Schoonen MAA: Thermal chemistry of H2S and H2O on the striated (100) plane of pyrite: Unique reactivity of defect sites. American Mineralogist. 1998, 83: 1246-1255.

    Google Scholar

  24. Schaufuss AG, Nesbitt HW, Kartio I, Kartio I, Laajalehto K, Bancroft GM, Szargan R: Incipient oxidation of fractured pyrite surfaces in air. Journal of Electron Spectroscopy and Related Phenomena. 1998, 96: 69-82. 10.1016/S0368-2048(98)00237-0.

    Article  Google Scholar

  25. Nesbitt HW, Bancroft GM, Pratt AR, Scaini MJ: Sulfur and iron surface states on fractured pyrite surfaces. Am Miner. 1998, 83 (9-10): 1067-1076.

    Google Scholar

  26. Elsetinow AR, Guevremont JM, Strongin DR, Schoonen MAA: Oxidation of {111} and {100} planes of pyrite: effects of surface atomic structure and preparation method. American Mineralogist. 2000, 85: 623-626.

    Article  Google Scholar

  27. Walling C: Fentons Reagent Revisited. Accounts Chem Res. 1975, 8 (4): 125-131. 10.1021/ar50088a003.

    Article  Google Scholar

  28. Chevion M: A site-specific mechanism for free radical induced biological damage: The essential role of redox-active transition metals. Free Radical Biology & Medicine. 1988, 5: 27-37. 10.1016/0891-5849(88)90059-7.

    Article  Google Scholar

  29. Tullius TD: Chemical 'snapshots' of DNA: using the hydroxyl radical to study the structure of DNA and DNA-protein complexes. Trends in Biochemical Sciences. 1987, 12: 297-300. 10.1016/0968-0004(87)90145-9.

    Article  Google Scholar

  30. Tullius TD, Greenbaum JA: Mapping nucleic acid structure by hydroxyl radical cleavage. Current Opinion in Chemical Biology. 2005, 9 (2): 127-134. 10.1016/j.cbpa.2005.02.009.

    Article  Google Scholar

  31. Kwan WP, Voelker BM: Rates of hydroxyl radical generation and organic compound oxidation in mineral-catalyzed Fenton-like systems. Environmental Science & Technology. 2003, 37 (6): 1150-1158. 10.1021/es020874g.

    Article  Google Scholar

  32. Moses CO, Nordstrom DK, Herman JS, Mills AL: Aqueous pyrite oxidation by dissolved oxygen and by ferric iron. Geochimica Cosmochimica Acta. 1987, 51: 161-1572. 10.1016/0016-7037(87)90337-1.

    Article  Google Scholar

  33. Borda MJ, Strongin DR, Schoonen MA: A vibrational spectroscopic study of the oxidation of pyrite by ferric iron. American Mineralogist. 2003, 88: 1318-1323.

    Article  Google Scholar

  34. Xu Y, Schoonen MAA: The absolute energy position of conduction and valence bands of selected semiconducting minerals. American Mineralogist. 2000, 85: 543-556.

    Article  Google Scholar

  35. Makino K, Hagiwara T, Hagi A, Nishi M, Murakami A: Cautionary note for DMPO spin trapping in the presence of iron ion. Biochemical and Biophysical Research Communications. 1990, 172 (3): 1073-1080. 10.1016/0006-291X(90)91556-8.

    Article  Google Scholar

  36. Schins RP: Mechanisms of genotoxicity of particles and fibers. Inhal Toxicol. 2002, 14 (1): 57 -578. 10.1080/089583701753338631.

    Article  Google Scholar

  37. Cohn CA, Laffers R, Schoonen MAA: Using yeast RNA as a probe for generation of hydroxyl radicals by earth materials. Environmental Science & Technology. 2006, 40: 2838-43. 10.1021/es052301k.

    Article  Google Scholar

  38. Gregg SJ, Sing KSW: Adsorption, surface area and porosity. 1982, London , Academic Press

    Google Scholar

  39. Cohn CA, Pak A, Schoonen MAA, Strongin DR: Quantifying hydrogen peroxide in iron-containing solutions using leuco crystal violet. Geochemical Transactions. 2005, 6 (3): 47–52-10.1063/1.1935449.

    Article  Google Scholar

  40. Zhang LS, Wong GTF: Spectrophotometric determination of H2O2 in marine waters with leuco crystal violet. Talanta. 1994, 41 (12): 2137-3145. 10.1016/0039-9140(94)00199-5.

    Article  Google Scholar

  41. Jones LJ, Yue ST, Cheung CY, Singer VL: RNA quantitation by fluorescence-based solution assay: RiboGreen reagent characterization. Analytical Biochemistry. 1998, 265: 368-374. 10.1006/abio.1998.2914.

    Article  Google Scholar

  42. Biegler T, Swift DA: Anodic behaviour of pyrite in acid solutions. Electrochimica Acta. 1979, 24: 415-420. 10.1016/0013-4686(79)87029-2.

    Article  Google Scholar

  43. Rosso KM, Becker U, Hochella MFJ: The interaction of pyrite {100} surfaces with O2 and H2O: Fundamental oxidation mechanisms. American Mineralogist. 1999, 84: 1549-1561.

    Google Scholar

  44. Borg RJ, Dienes GJ: The physical chemistry of solids. 1992, Boston , Academic Press, 584-

    Google Scholar

  45. Bigda RJ: Consider Fenton's chemistry for wastewater treatment. Chemical Engineering Progress. 1995, 91 (12): 62-66.

    Google Scholar

  46. Rickard D, Schoonen MAA, Luther GW: Geochemical Transformations of Sedimentary Sulfur. Edited by: Vairavamurthy MA, Schoonen MAA. 1995, Washington, D.C. , Am. Chem. Soc., 612: 168-193. Chemistry of iron sulfides in sedimentary environments ACS Symposium Ser.

    Chapter  Google Scholar

  47. Schoonen MAA: Sulfur biogeochemistry—Past and present. Edited by: Amend JP, Edwards KJ, Lyons TW. 2004, Boulder, Colorado , 117–134- Mechanisms of sedimentary pyrite formation Geological Society of America Special Paper 379,

    Google Scholar

Download references


This work was funded by the Department of Energy through grants to D.R.S. and M.A.S., Basic Energy Sciences grants DEFG029ER14644 and DEFG0296ER14633, respectively, and the Center for Environmental Molecular Science (NSF CHE 0221934). C.C. acknowledges support from a National Defence Science and Engineering Graduate Fellowship.

Author information

Authors and Affiliations


Corresponding author

Correspondence to Corey A Cohn.

Additional information

Competing interests

The author(s) declare that they have no competing interests.

Electronic supplementary material


Additional File 1: ESR data using in Figure 1 in EXCEL spreadsheet format. (XLS 181 KB)


Additional File 2: UV-Vis absorbance data used in Figure 5 in EXCEL spreadsheet format. (XLS 100 KB)

Authors’ original submitted files for images

Rights and permissions

Open Access This is an open access article distributed under the terms of the Creative Commons Attribution Noncommercial License ( ), which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.

Reprints and permissions

About this article

Cite this article

Cohn, C.A., Mueller, S., Wimmer, E. et al. Pyrite-induced hydroxyl radical formation and its effect on nucleic acids. Geochem Trans 7, 3 (2006).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:
